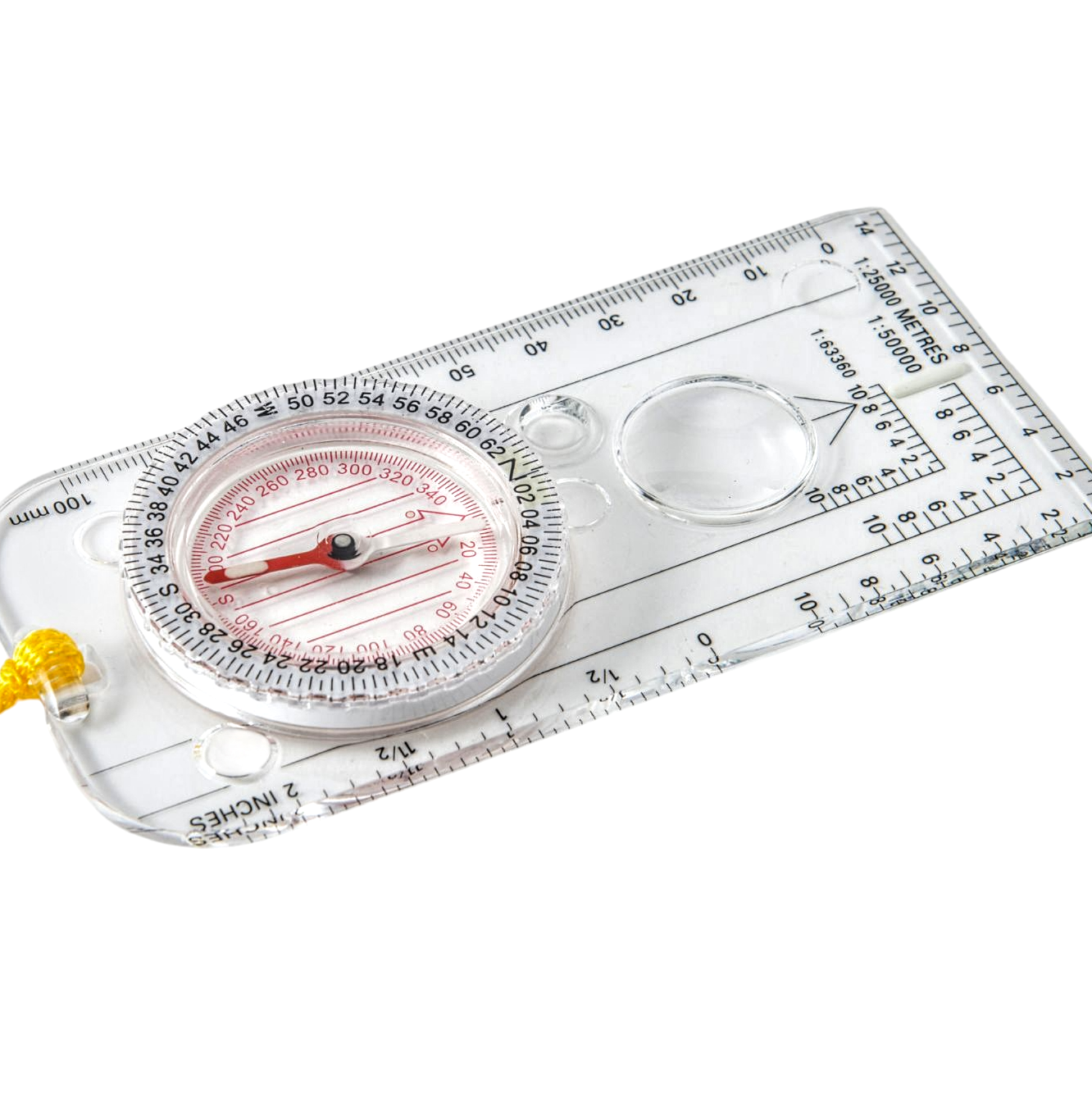

Full-Sized Base Plate Compass for Precision Navigation
Designed for experienced navigators, this full-sized base plate compass is a reliable tool for precise navigation in the field. Commonly used by military personnel and outdoor professionals, it features measuring scales for GPS positioning, graduations in both mils and degrees (6400/360), and a magnifying glass for detailed map work.
The luminous markings require activation by daylight or flashlight and provide up to 4 hours of visibility in low-light conditions.
Key Features
- Compass Capsule / Needle: High-precision for reliable readings
- Sighting System: No
- Magnifying Lens: Yes
- Declination Adjustment: Scale in capsule
- Clinometer: No
- Illumination: Yes, up to 4 hours after activation
- Luminous Compound: Standard glow-in-the-dark material
- Silicon Friction Feet: No
Specifications
- Available Graduations: 6400/360 (360 inside capsule), 6300, 360
- Resolution (Degrees / Mils): 2° / 50 mils
- Measuring Scales on Base Plate: mm, inch
- UTM Position Plotting Scales (Romer Scales): 1:25k, 1:50k
- Settling Time from 90° Angle (±3°): 2.7 sec
- Settling Time from 90° Angle to Complete Rest: 5 sec
- Accuracy: ±1° (17.8 mils)
- Waterproof Rating: IP68 (submersible beyond 100m)
- Altitude Use: 5000m @ -15°C
- Impact Resistance: Withstands 30g in XYZ directions and free fall from 1.5m onto gravel
- Temperature Operating Range: -40°C to +60°C
- Material: Acrylic
- Size: 126 x 60 x 10 mm
- Weight: 36g
- Recommended For: Military, outdoor professionals, and precision navigation
Built for durability and accuracy, this compass is a dependable tool for any navigation challenge.
